Technical attributes
- Machine type
- TITAN
- Subgroup
- Discs, packer rings & bearings
- Length
- N/A
- Part number
- N/A
Standards
- ISO
- N/A
- DIN
- N/A
- OEM reference
- N/A
Accessories
Flange extern Ø110
- Height
- 31
- Square shafts
- 30x30
- Hole
- 31x31
- Outside diameter
- 110
Flange intern Ø110
- Height
- 31
- Square shafts
- 30x30
- Hole
- 31x31
- Outside diameter
- 110
Transition piece for 30x30 square shaft
- Material
- GG25 (EN-GJL-250) - (EN-JL1040)
- Length
- 185
- fit for:
- Scheibeneggen und Nachlaufgeräte
- Hole
- 31x31
- Outside diameter
- 110
Notched disc Ø410x4
- C ± 1mm
- 31
- No. notches
- 8
- Square shafts
- 30
- Thickness
- 4
- Diameter
- 410
- Concavity
- 46
Notched disc Ø450x4
- C ± 1mm
- 31
- No. notches
- 9
- Square shafts
- 30
- Thickness
- 4
- Diameter
- 450
- Concavity
- 57
Hexagon bolt with metric fine thread - M16x1,5x45 - 12.9
- Quality
- 12.9
- Thread
- M16x1,5
- Length
- 45
- Length of the thread
- 21
- Opening of the spanner
- 24
Self-locking nut - M16x1,5
- Thread
- M16x1,5
Hexagon bolt with metric fine thread - M12x1,25x40 - 12.9
- Quality
- 12.9
- Thread
- M12x1,25
- Length
- 40
- Length of the thread
- 20
- Opening of the spanner
- 19
Self-locking nut - M12x1,25
- Thread
- M12x1,25
Lubricating nipple M10
Spring 120x12 - ''TITAN - TERRA X''
- Please see:
- Montageanweisung
Shipping
-
Standard2–5 days€5.90Free over €150
-
Express (order before 11:30)Usually next weekday€29.90Free over €300
-
PalletSuitable for large/heavy orders€25.00Free over €500
Express delivery usually next weekday. Delivery times may vary depending on location.
Beschreibung

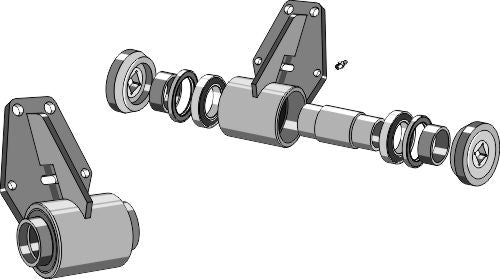

Bearing compl. for 30x30 square shaft without flange
