Technical attributes
- Machine type
- N/A
- Length
- N/A
- Part number
- N/A
Standards
- ISO
- N/A
- DIN
- N/A
- OEM reference
- N/A
Accessories

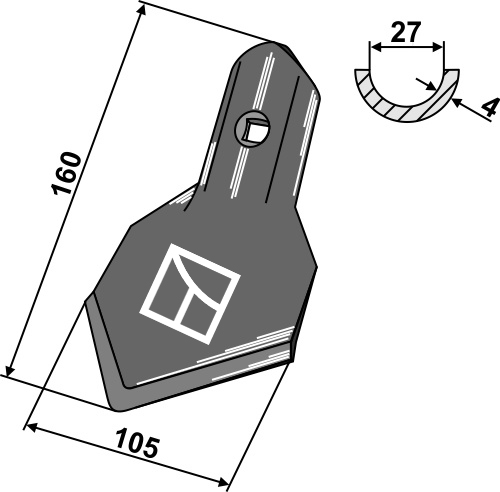

Standard share K45 105mm
- Working width
- 105
- Thickness
- 4
- Work angle
- 35°

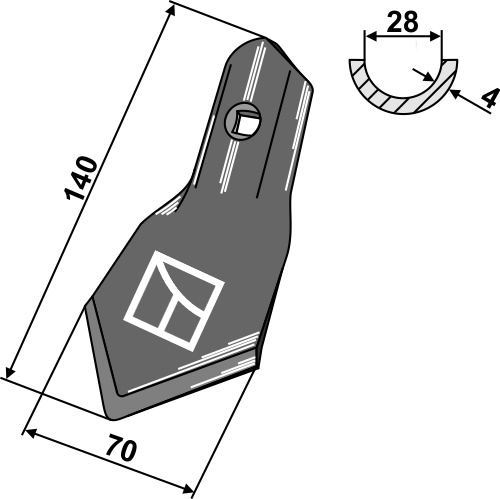

Standard share K46 70mm
- Length
- 140
- Working width
- 70
- Thickness
- 4
- Work angle
- 35°
- Bolts for cultivators
- M10

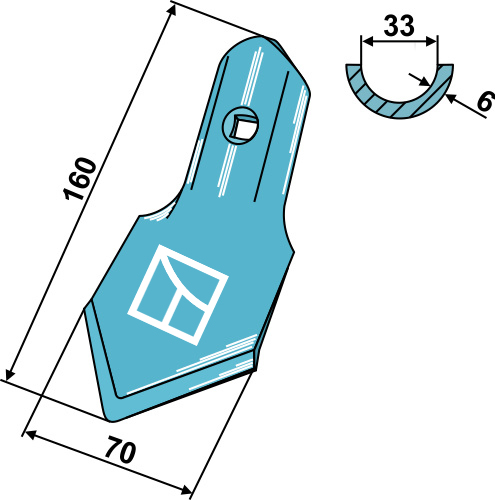

Standard share K46 70mm
- Length
- 160
- Working width
- 70
- Thickness
- 6
- Work angle
- 40°
Standard share K45 105mm
- Working width
- 105
- Thickness
- 5
- Work angle
- 35°
- Bolts for cultivators
- M10

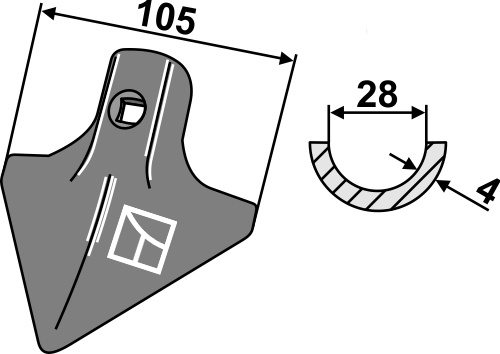

Jointer 105mm
- Working width
- 105
- Thickness
- 4
- Work angle
- 35°
- Cross reference
- 1.KH1.D
Jointer 150mm
- Working width
- 150
- Thickness
- 4
- Work angle
- 40°
- Cross reference
- 1.KH2.D
Jointer 175mm
- Working width
- 175
- Thickness
- 4
- Work angle
- 40°
- Cross reference
- 1.KH3.D

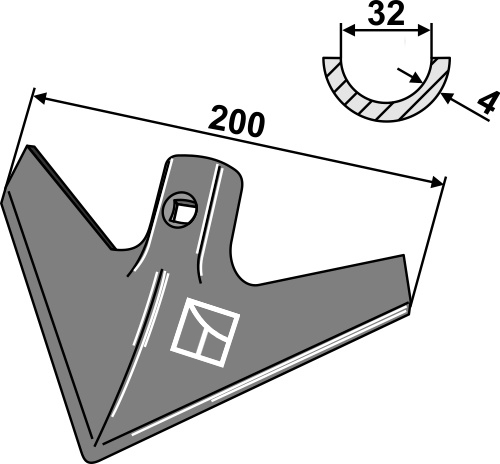

Jointer 200mm
- Working width
- 200
- Thickness
- 4
- Work angle
- 40°
- Cross reference
- 1.KH4.D

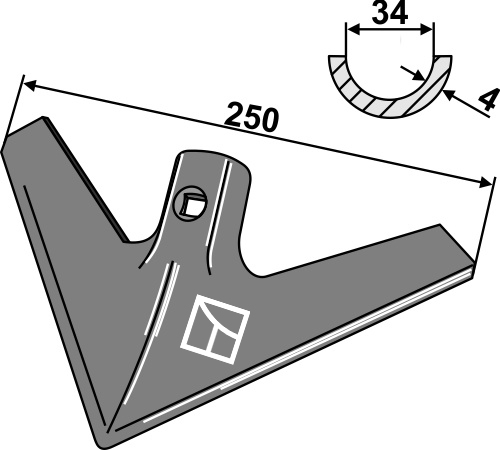

Jointer 250mm
- Working width
- 250
- Thickness
- 4
- Work angle
- 40°
- Cross reference
- 1.KH5.D
Clamp for tine 32x12
- Frame
- 40x15
- Hole
- 13
- Material dimensions
- 50x6
- Tines
- 32x12
Clamp for tine 32x12
- Frame
- 40x40
- Hole
- 13
- Material dimensions
- 50x6
- Tines
- 32x12
Clamp for tine 32х12
- Frame
- 50x15
- Hole
- 12,5
- Material dimensions
- 50x8
- Tines
- 32x12
Clamp for tine 32х12
- Frame
- 50x15
- Hole
- 13
- Material dimensions
- 50x6
- Tines
- 32x12
Clamp for tine 32x12
- Frame
- 50x30
- Hole
- 13
- Material dimensions
- 50x6
- Tines
- 32x12
Clamp for tine 32x12
- Frame
- 50x30
- Hole
- 13
- Material dimensions
- 50x6
- Tines
- 32x12
Clamp for tine 32x12
- Frame
- 50x50
- Hole
- 12,5
- Material dimensions
- 50x8
- Tines
- 32x12
Clamp for tine 32x12
- Frame
- 50x50
- Hole
- 13
- Material dimensions
- 50x6
- Tines
- 32x12
Clamp for tine 32x12
- Frame
- 50x50
- Hole
- 13
- Material dimensions
- 50x6
- Tines
- 32x12
Shipping
-
Standard2–5 days€5.90Free over €150
-
Express (order before 11:30)Usually next weekday€29.90Free over €300
-
PalletSuitable for large/heavy orders€25.00Free over €500
Express delivery usually next weekday. Delivery times may vary depending on location.
Description

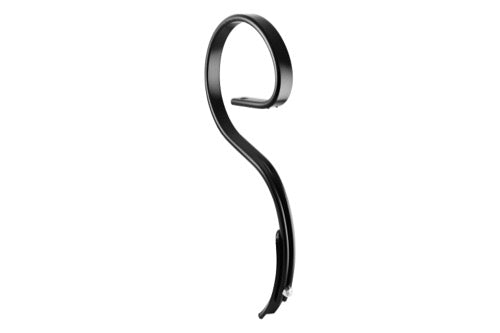

Harrow tine with share
